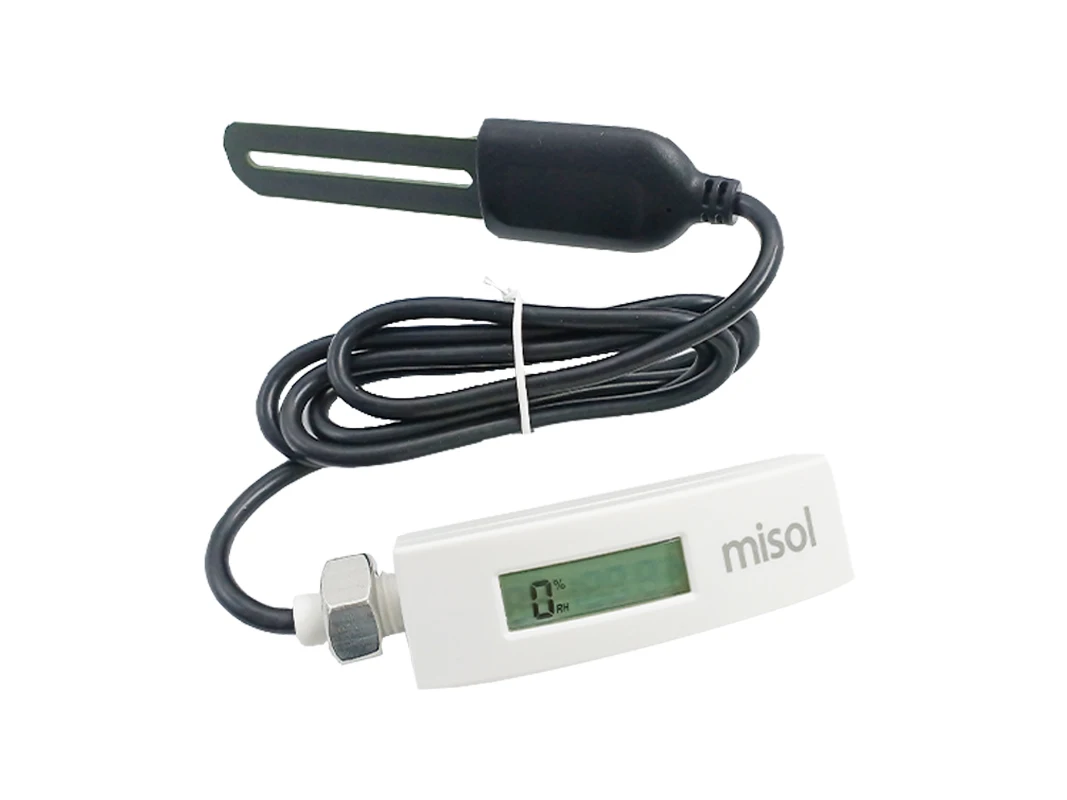

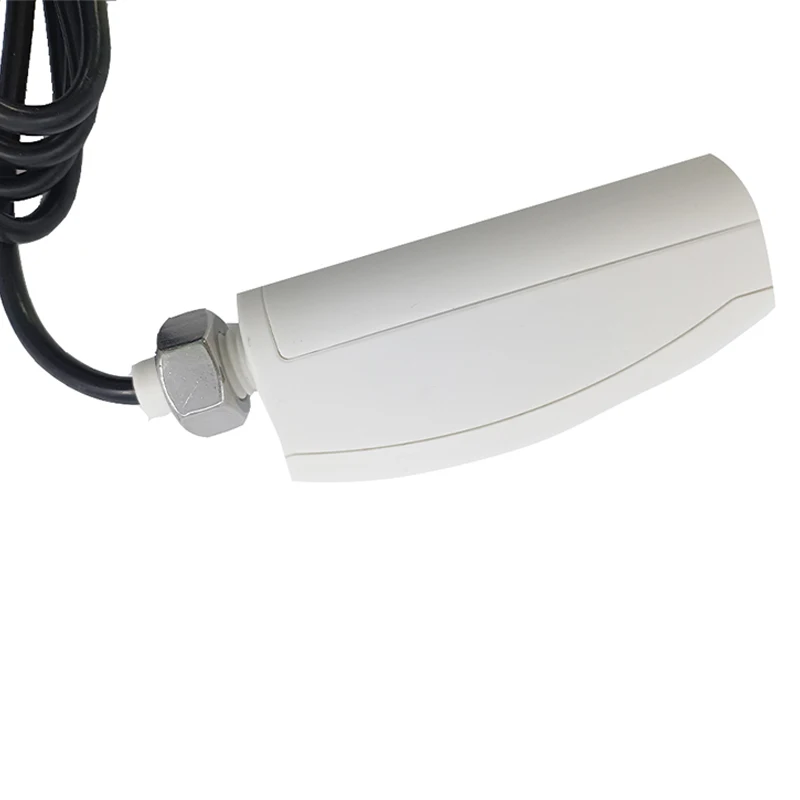

– This device can measure soil moisture.
– Wireless 433Mhz.
– The wireless signal can be received by the Wi-Fi Gateway (sold separately) or display consoles, such as
GW1100/GW1200/GW2000/ HP2550/HP3500/HP2560 Weather Station (sold separately).

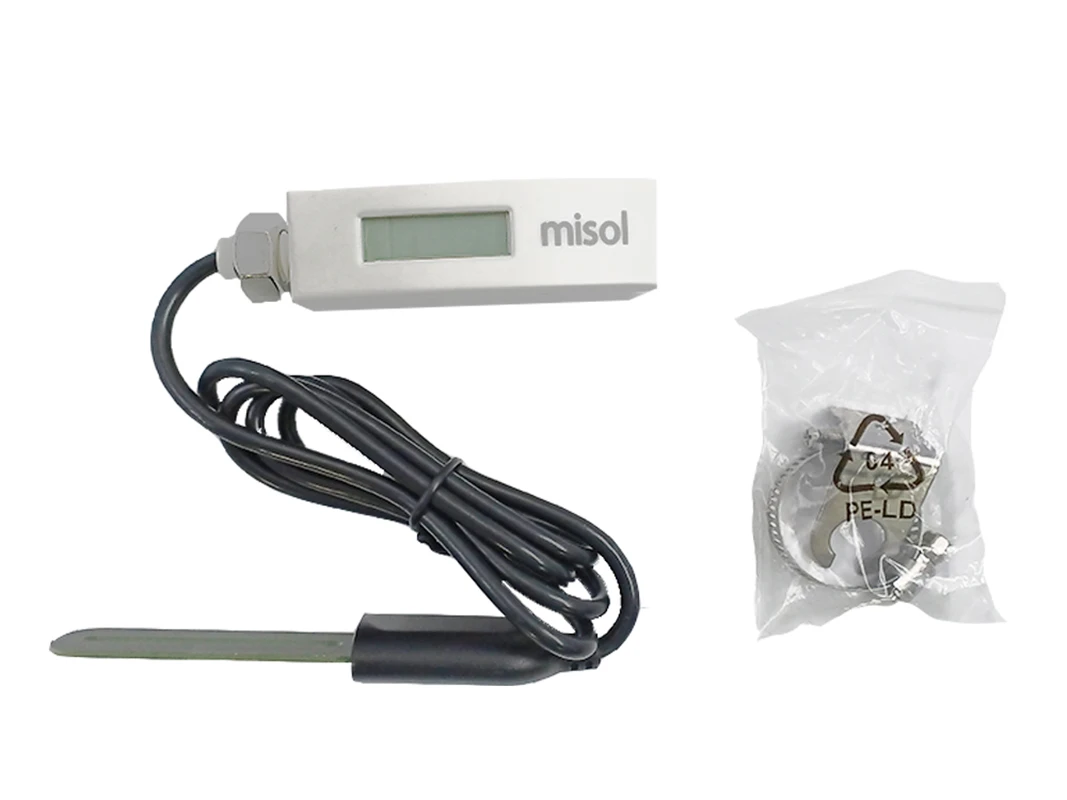

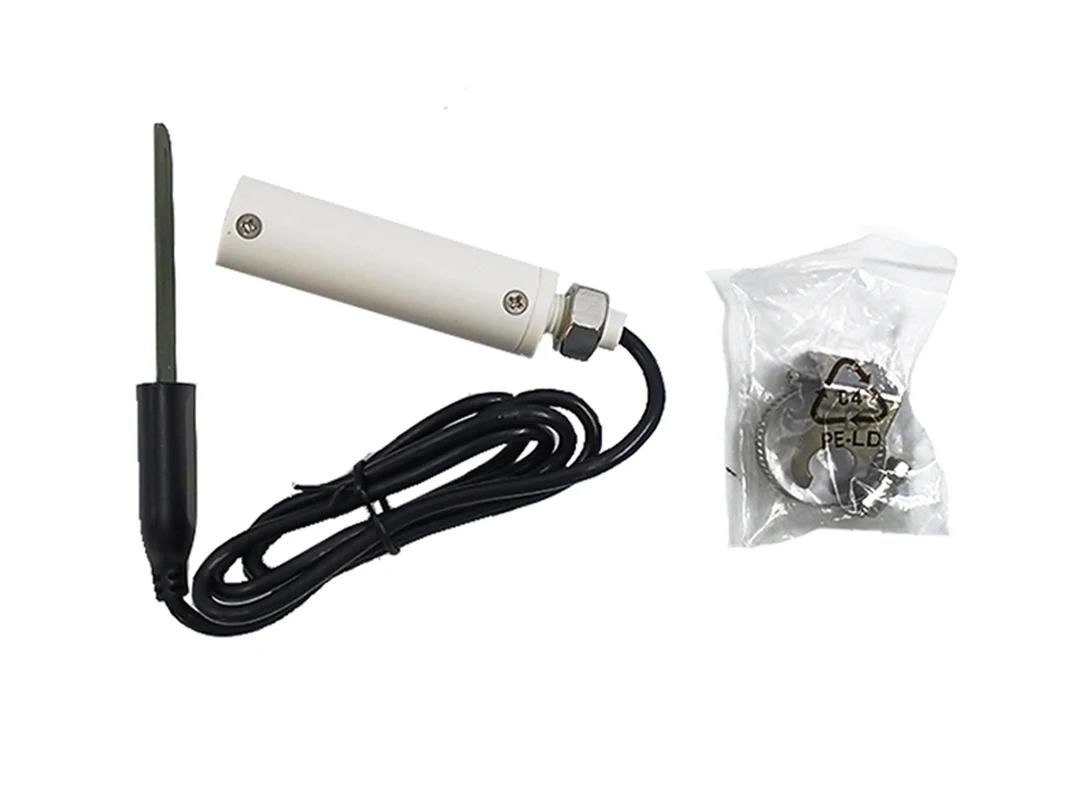

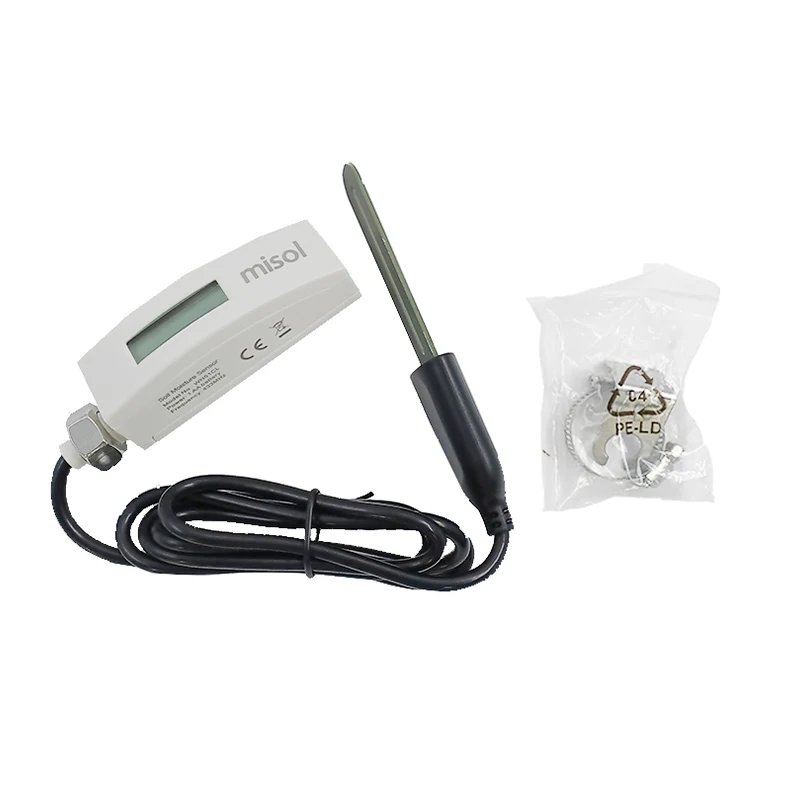

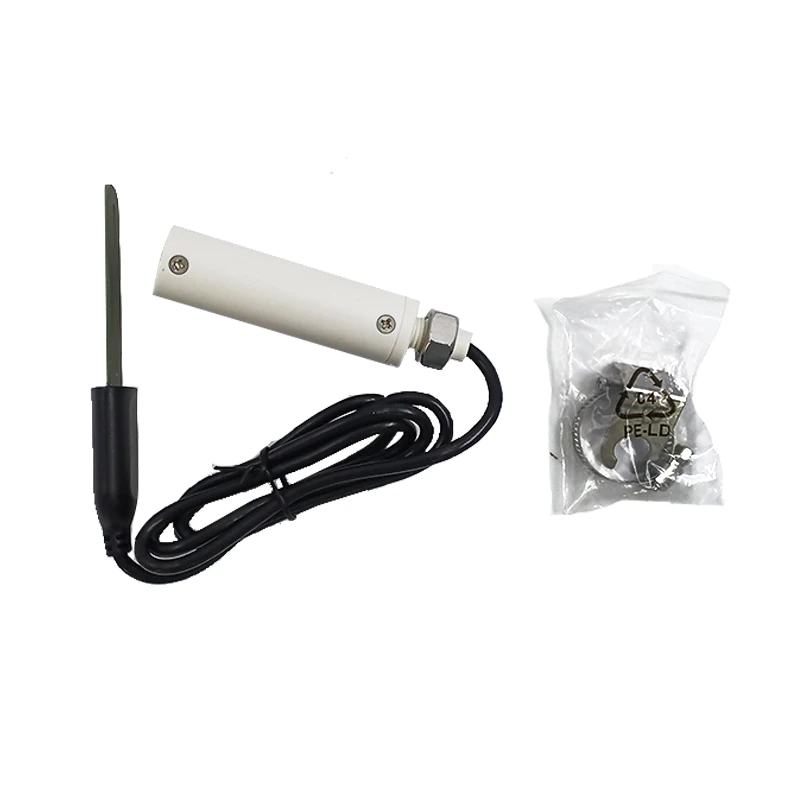

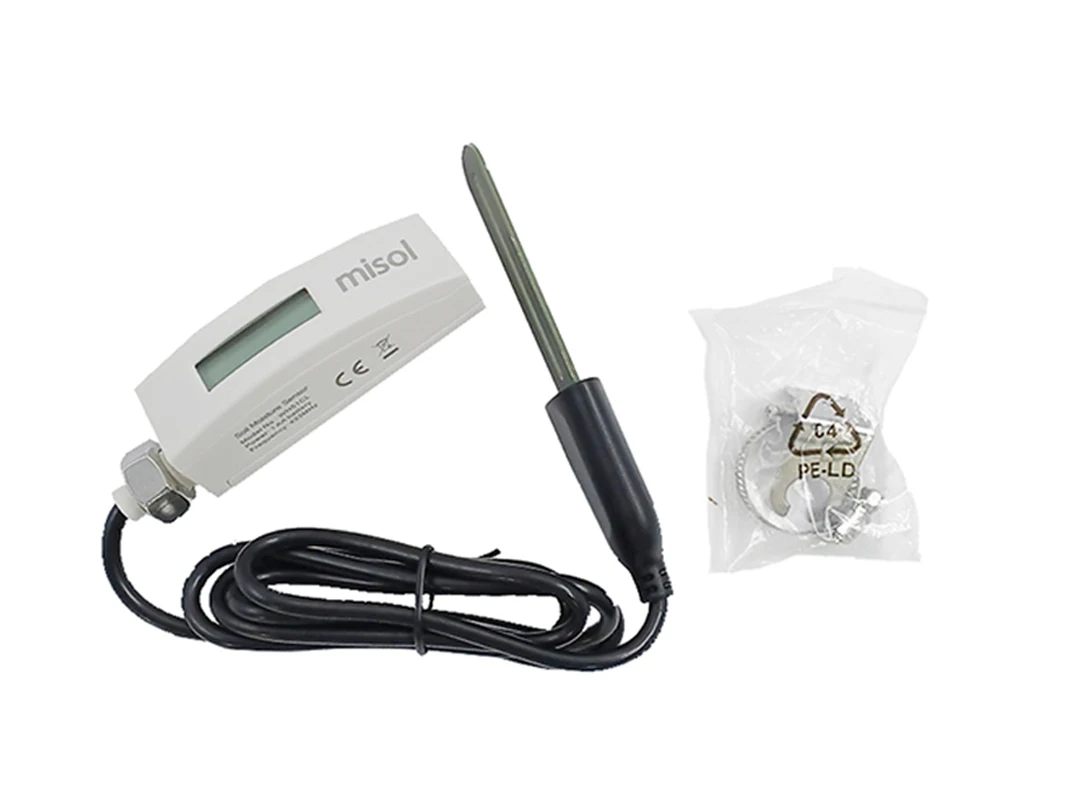

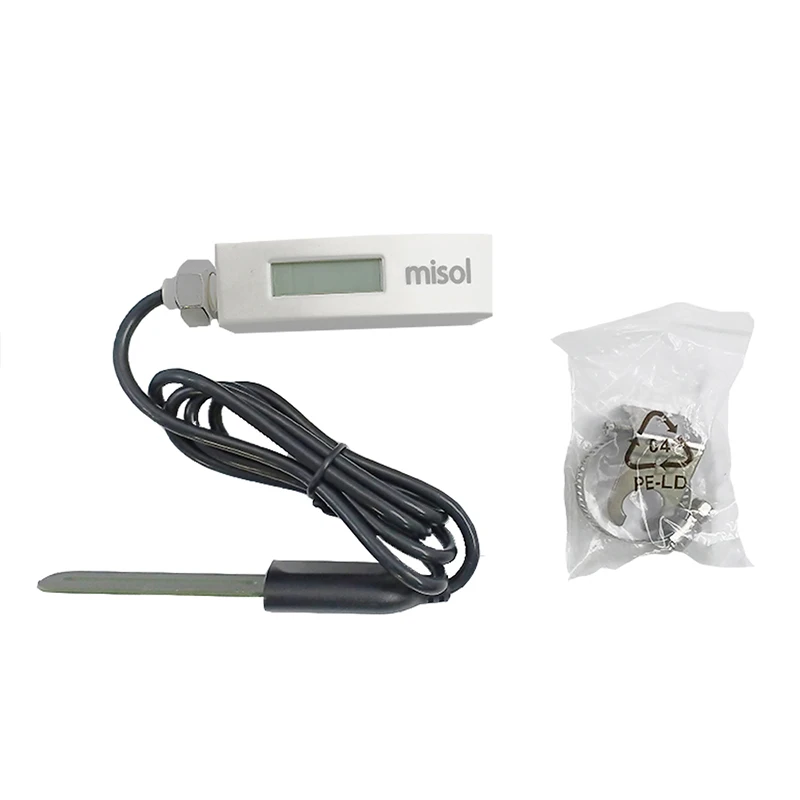

Parts List as below:
1 x Soil Moisture Sensor
1 x Screw ST D5.8*M3*15 Stainless Steel PA for Mounting
1 x Stainless Steel Loop 19~29 8mm for Mounting
1 x Fix Bracket 35.1*21*20mm Stainless Steel for WH51L
1 x User Manual (English)
|

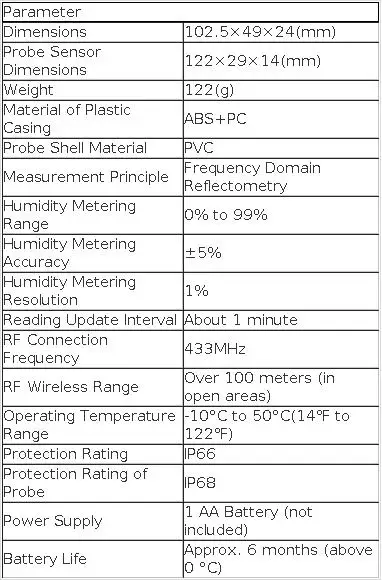

Parameter |
|
|
Dimensions |
102.5×49×24(mm) |
|
Probe Sensor Dimensions |
122×29×14(mm) |
|
Weight |
122(g) |
|
Material of Plastic Casing |
ABS+PC |
|
Probe Shell Material |
PVC |
|
Measurement Principle |
Frequency Domain Reflectometry |
|
Humidity Metering Range |
0% to 99% |
|
Humidity Metering Accuracy |
±5% |
|
Humidity Metering Resolution |
1% |
|
Reading Update Interval |
About 1 minute |
|
RF Connection Frequency |
433MHz |
|
RF Wireless Range |
Over 100 meters (in open areas) |
|
Operating Temperature Range |
-10°C to 50°C(14℉ to 122℉) |
|
Protection Rating |
IP66 |
|
Protection Rating of Probe |
IP68 |
|
Power Supply |
1 AA Battery (not included) |
|
Battery Life |
Approx. 6 months (above 0 °C) |
Delivery Term:
Buyer, as the importer, is responsible for paying the customs clearance cost or related TAX for the importation.
M***s –
Works great.
AliExpress Shopper –
Quality product, highly recommended.
7***r –

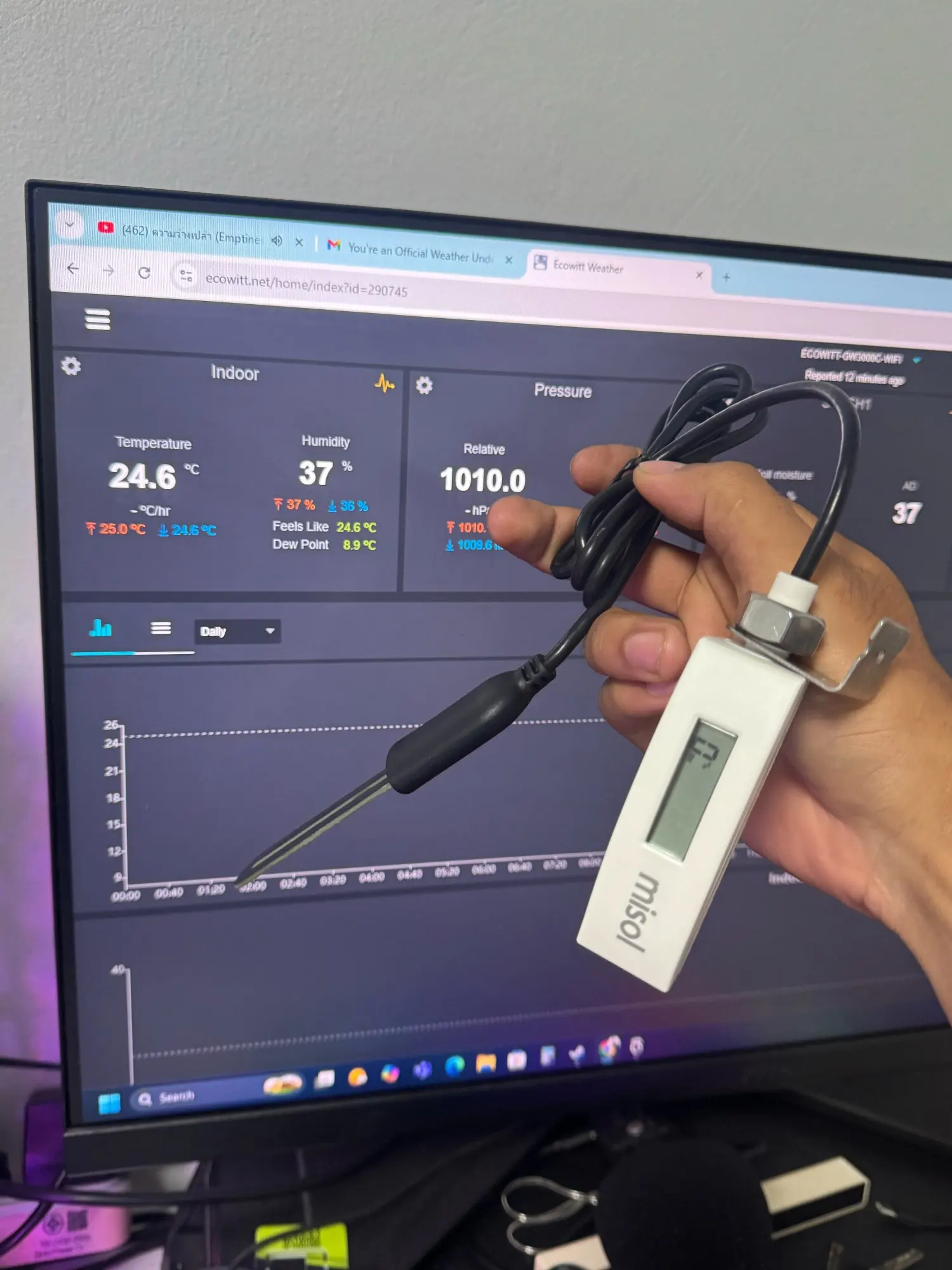

It works with the GW3000 – you know which company it’s from 😉
